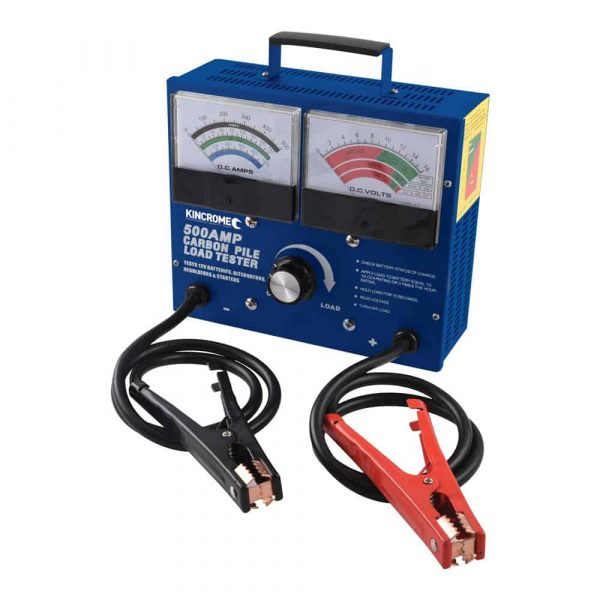

Twin analogy gauge carbon pile load tester is used in conventional testing of all types of batteries. Loading the battery to the Cold Cranking Amps for a time period will allow us to determine if and cells are faulty and the battery can deliver. Features: Simple but efficient battery testing equipment which also has the ability to test alternators, regulators and starters. 500AMP Carbon Pile Battery Load Tester Colour-coded, Temperature compensation pass fail bands on the voltmeter insure concise battery load test results. Separate voltmeter and ammeter provide easy to monitor battery load tests. Tests batteries up to 1,000CCA. Tests 12V batteries, alternators, regulators & starters. Built with warning beeper. Meets UL standards. Specifications: Tests – Volts (0–16VDC), 12V lead acid batteries, 12V charging systems (alternators & regulators) Battery Range – Up to 1000CCA (160Ah) Test Load – Adjustable carbon pile 0 – 500 Amps Max Cool Down Time – 20 Seconds Recommended Cool Down Time – 2 Minutes Test Time Alert – Buzzer sounds after 15 seconds Cable Length – 1000mm Size – 267mm x 230mm x 92mm Weight – 3.5kg
