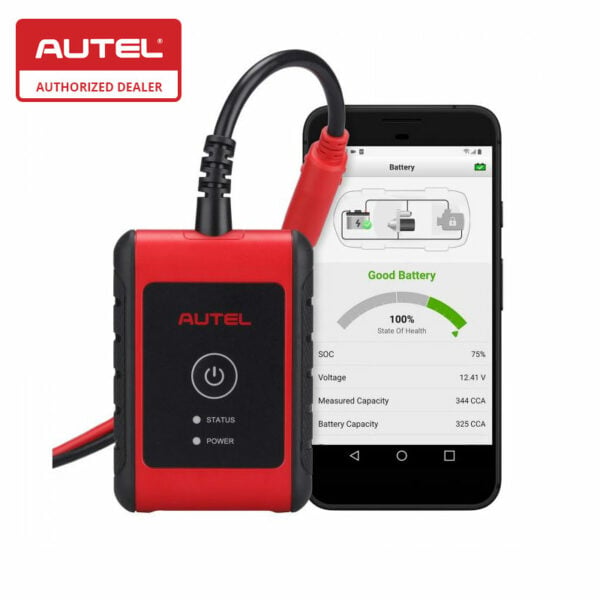

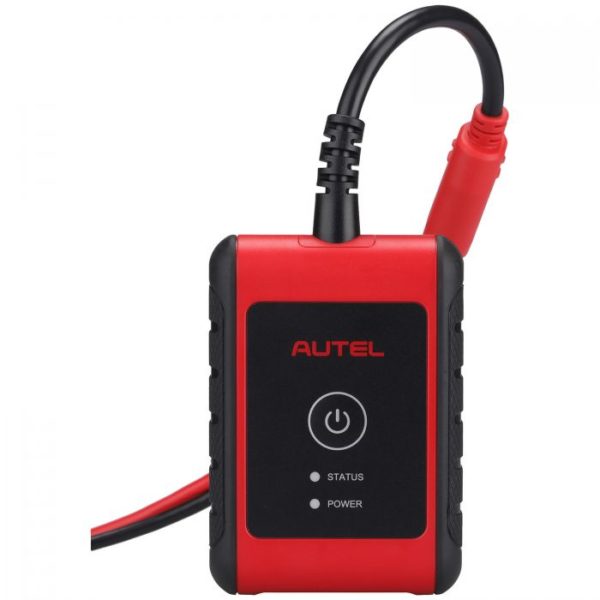

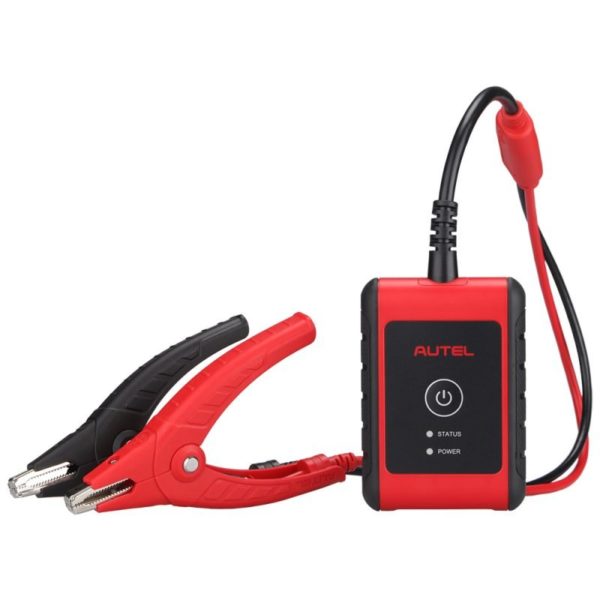

Why buy from Need Finance Assistance? autosupply's Finance Options LEARN MORE THE BT506 is a battery and electrical system analysis tool that uses Adaptive Conductance, an advanced battery analysis method to produce a more accurate examination of the battery’s cold-cranking ability and reserve capacity, vital to determining a battery’s true health. The BT506 enables technicians to view the health status of a vehicle’s battery and electrical system. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT506 to perform testing and display test results. Autel MaxiBAS BT506 & BT508 Brochure Autel MaxiBAS Comparison Chart Features: Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries Test 6- and 12-volt batteries: 100 – 2000 CCA Test 12-volt cranking/charging systems Test Flooded, AGM, AGM Spiral, EFB and GEL batteries Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA Specifications: Item Description Connectivity USB 2.0, Type C Bluetooth V3.0 BR/EDR V4.2 LE Dual-Mode Input Voltage 5V DC Working Current < 150 mA at 12V DC Internal Battery N/A CCA Range 100 to 2000A Voltage Range 1.5 to 16V Working Temperature -10°to 50° C (14° to 122° F) Storage Temperature -20° to 60° C (-4° to 140° F) Dimension (L x W x H) 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included) Weight 320 g (0.7 lb.)
